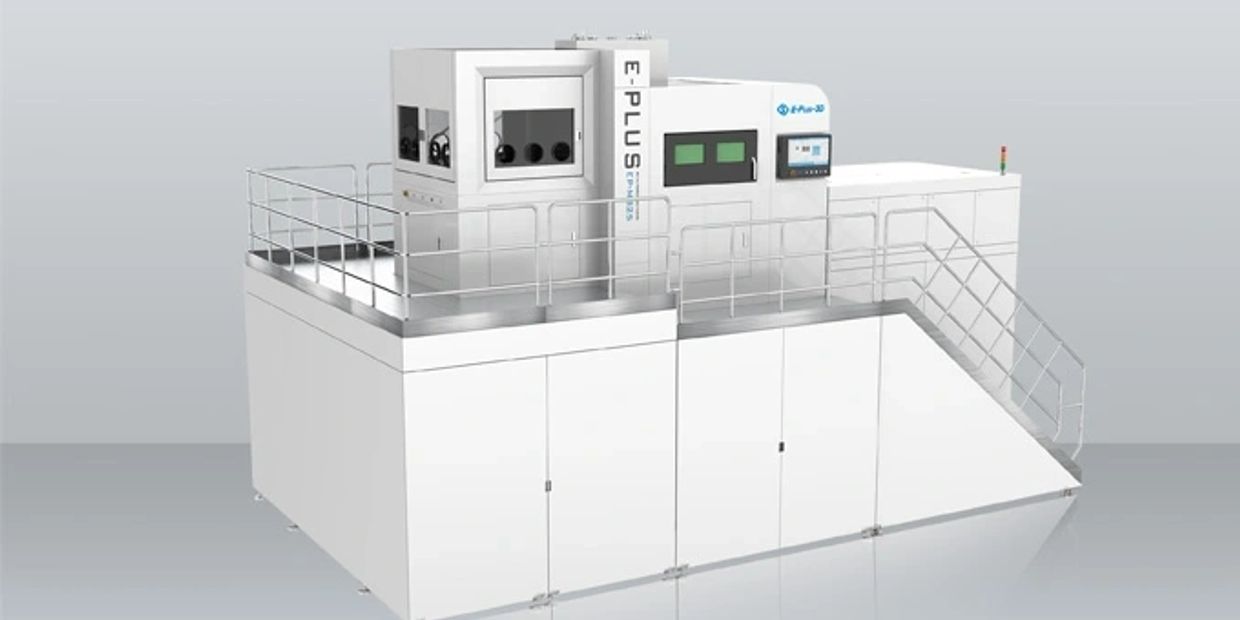

EP-M825
Technical Specifications
- Machine Model: EP-M825
- Build Chamber (XxYxZ)833 x 833 x 1100 mm (32.8 x 32.8 x 43.3 in) (height incl. build plate)
- Optical System: Fiber Laser 4 / 6 / 8 / 10 x 500 W / 700 W
- Spot Size: 70~120 µm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20~120 µm
- Theoretical Printspeed: Up to 410 cm³/h
- Material: Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
- Power Supply: 380 V, 60~100 A, 50 / 60 Hz, 25 ~ 38 kW
- Gas Supply: Ar / N₂
- Forming chamber oxygen content: ≤100 ppm
- Dimension: (WxDxH)8290 x 4690 x 5470 mm
- Weight: 35000 kg
- Software: EP Control, EP-Hatch
- Input Data Format: STL file or other convertible format
3D printouts
Rocket Engine Nozzle Expansion
Industry: Aerospace
Application: Rocket Engine Nozzle Expansion
Material: Stainless Steel
Printing Time: 160 hours
