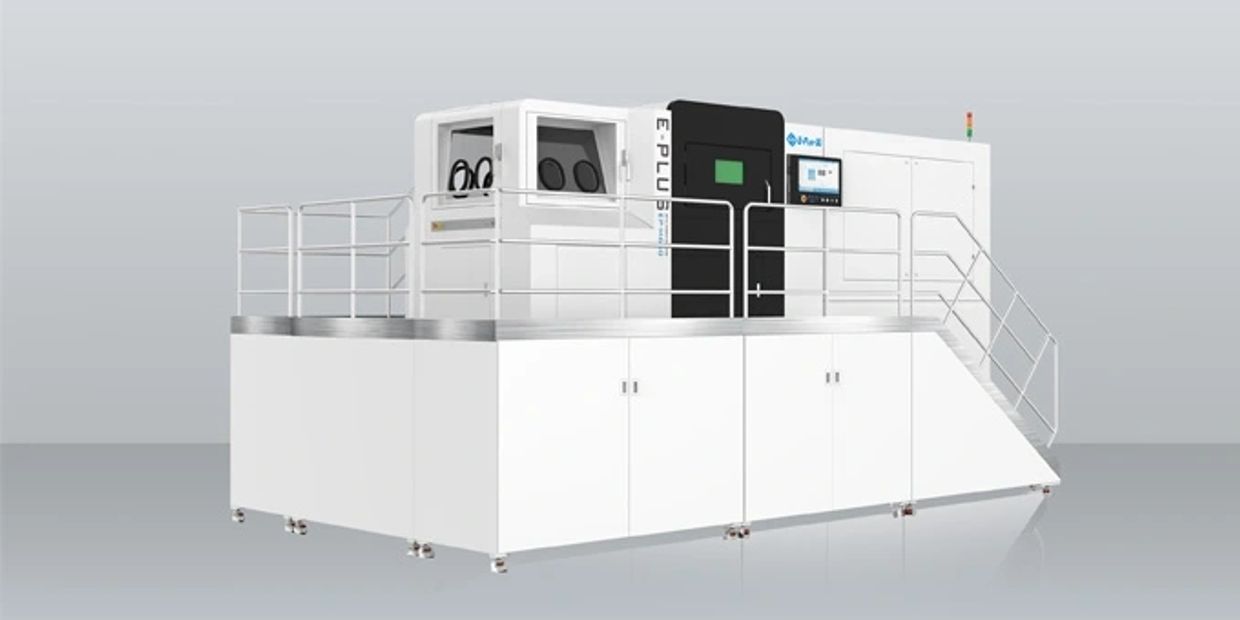

EP-M650

Technical Specifications

Machine Model: EP-M650
Build Volume (XxYxZ)650 x 650 x 800 mm (25.59 x 25.59 x 31.49 in)(height incl. build plate)
Optical System Fiber Laser 4 x 500 W / 4 x 700 W / 4 x 1000 W
Spot Size:70~120 µm
Max Scan Speed: 9 m/s
Layer Thickness: 20~120 µm
Theoretical Printspeed: Up to 190 cm³/h
Material:Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Substrate heating: Substrate heating temperature 200℃
Power Supply: 380 V, 65 A, 50 / 60 Hz, 30 kW
Gas Supply: Ar / N₂
Forming chamber oxygen content≤100 ppm
Dimension: (WxDxH): 6800 x 3945 x 3785 mm
Weight: 15000 kg
Software: EP-Hatch, EP Control
Input Data Format: STL file or another convertible format
