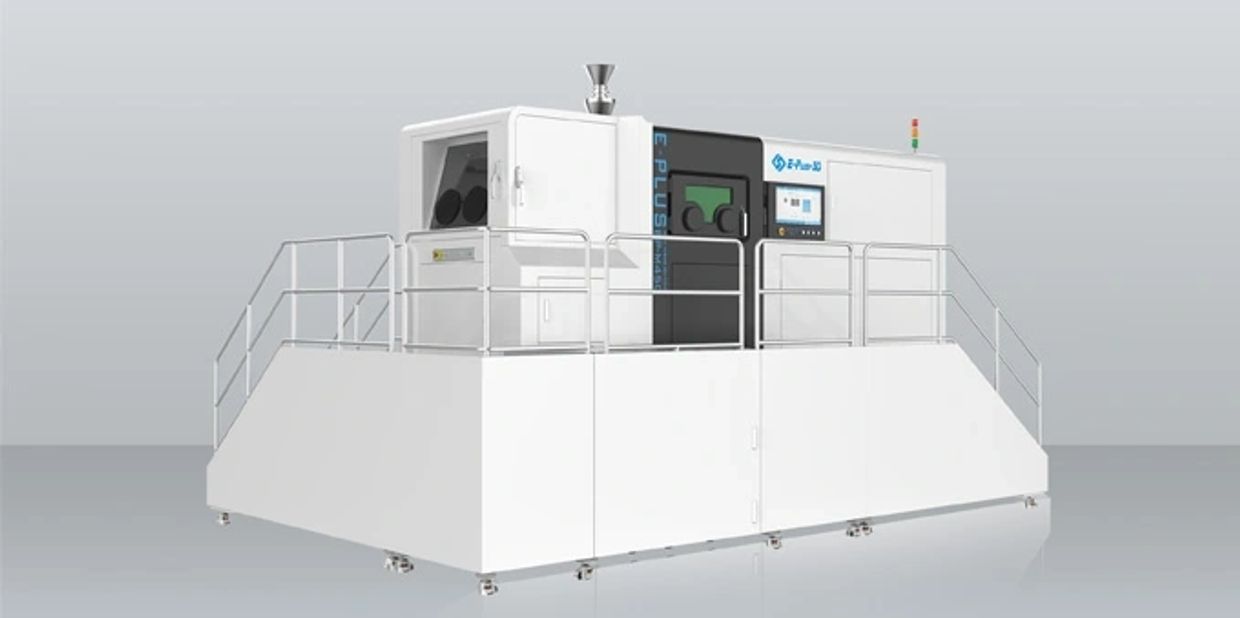

EP-M450
Technical Specifications
- Machine Model: EP-M450
- Build Chamber: (XxYxZ)450 x 450 x 550 mm (17.72 x 17.72 x 21.65 in)(height incl. build plate)
- Optical System Fiber Laser 500 W / 2 x 500 W / 4 x 500 W (700 W and 1000 W are optional)
- Spot Size: 70~130 µm
- Max Scan Speed: 8 m/s
- Layer Thickness: 20~120 µm
- Theoretical Printspeed: Up to 190 cm³/h
- Material: Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
- Power Supply: 380 V, 30 A, 13.3 kW, 50/60 Hz
- Gas Supply: Ar / N₂
- Forming chamber oxygen content≤100 ppm
- Dimension (WxDxH)5670 x 3700 x 3325 mmWeight10000 kg
- Software: EP Control, EP-Hatch
- Input Data Format: STL file or another convertible format
3D Printouts
Integral Guide
Industry: Aerospace
Application: Integral Guide
Material: Aluminum Alloy
Printing Time: 124 hours
