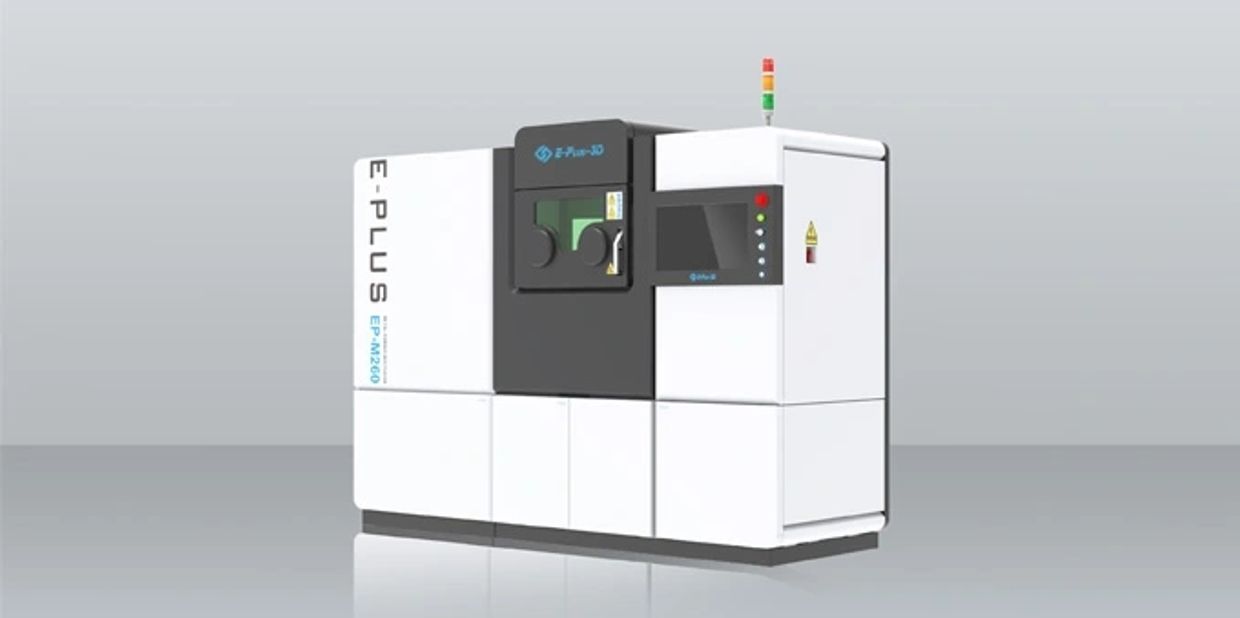

Ep-M260

Technical Specifications

Machine Model: EP-M260
Build Chamber (XxYxZ): 260 x 260 x 390 mm (10.24 x 10.24 x 15.35 in)(height incl. build plate)
Optical System: Fiber Laser, 500 W / 700 W (single or dual-laser optional)
Spot Size: 70~100 µm
Max Scan Speed: 8 m/s
Theoretical Print speed: Up to 55 cm³/h
Layer Thickness: 20~120 µm
Material: Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply: 380 V, 24 A, 50 / 60 Hz, 5 kW
Gas Supply: Ar / N₂
Oxygen content: ≤100 ppm
Dimension (WxDxH): 2800 x 1300 x 2410 mm
Weight: 2300 kg
Software: EP Control, EP-Hatch
Input Data Format: STL or other Convertible File
