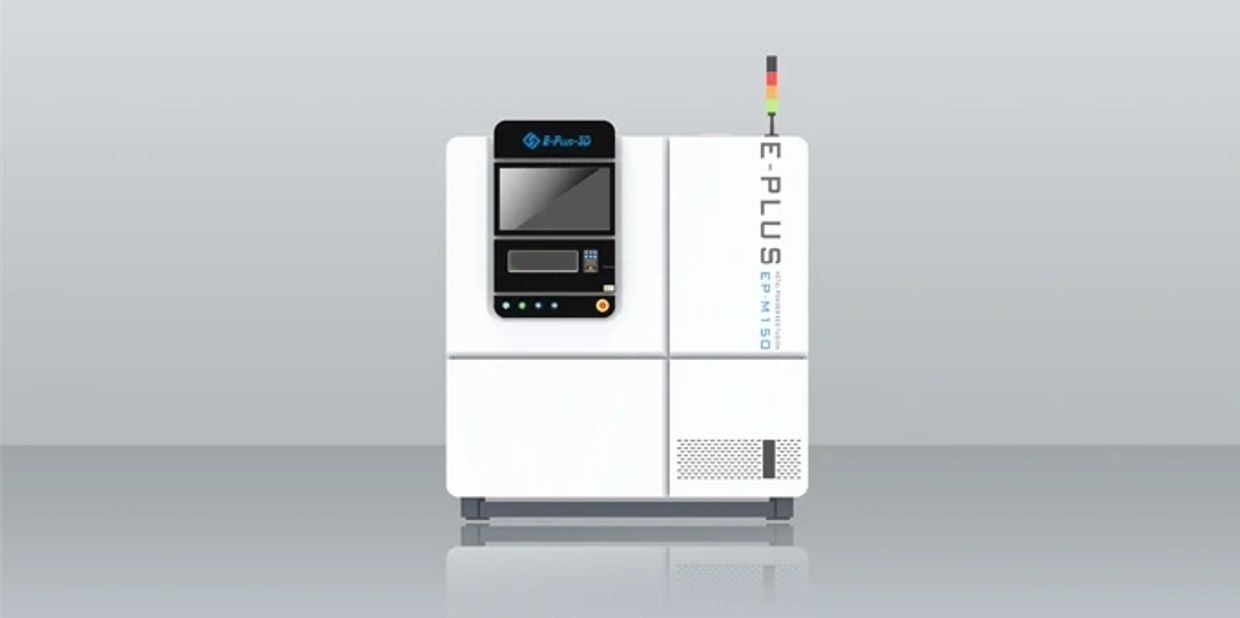

EP-M150
Technical Specifications
- Machine Model: EP-M150
- Build Chamber: (XxYxZ): Φ150 mm x 140 mm (Φ 5.91 x 5.51 in) (height incl. build plate)
- Optical System: Fiber Laser, 200 W / 500 W (single or dual-laser optional)
- Spot Size: 40~60 μm
- Max Scan Speed: 8 m/s
- Theoretical Print speed: Up to 35 cm³/h
- Layer Thickness: 200 W laser: 20~50 μm 500 W laser: 20~100 μm
- Material: Titanium Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
- Power Supply: 220 V, 3 kW, 14 A, 50 ~ 60 Hz (Dual laser : 5.8 kW, 19 A)
- Gas Supply: Ar / N₂Oxygen content≤100 ppm
- Dimension (WxDxH): 1750 x 799 x 1828 mm
- Weight: 900 kg
- Software: EP Control, EP-Hatch
- Input Data Format STL or other Convertible File
3D Printouts
Implants
Fine Structure Parts
Fine Structure Parts
Application: Medical
Material: Titanium Alloy
Printing Time: 1.3 hours
Fine Structure Parts
Fine Structure Parts
Fine Structure Parts
Application: Aerospace
Material: Stainless Steel
Printing time: 2.1 hours
