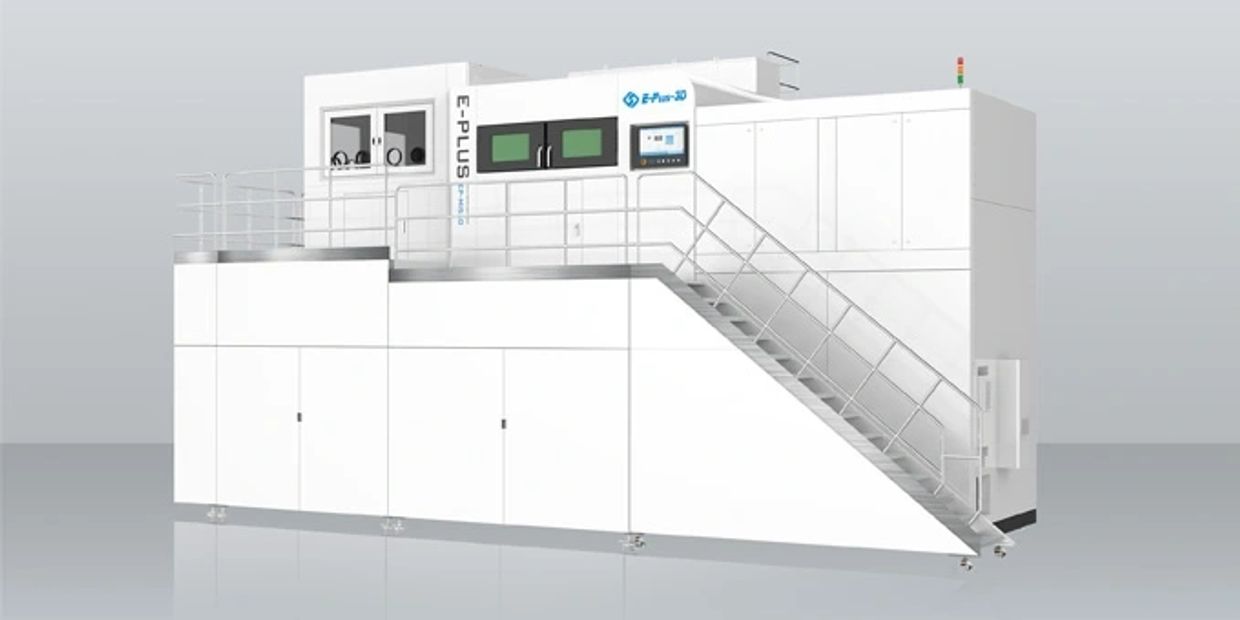

EP-M1550

Technical Specifications

Machine Model: EP-M1550
Build Chamber: (XxYxZ)1558 x 1558 x 1200 mm (61.34 x 61.34 x 47.24 in) (height can be customized to 2000 mm)(height incl. build plate)
Optical System: Fiber Laser 16 x 500 W / 700 W ( can be customized to 25 lasers)
Spot Size: 70 - 120 μm
Max Scan Speed: 8 m/s
Layer Thickness: 20 - 120 μm
Theoretical Printspeed: Up to 650 cm³/h
Material: Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Power Supply: 380 V, 50 / 60 Hz, 77 kW
Gas Supply: Ar / N₂
Forming chamber oxygen content: ≤100 ppm
Dimension: (WxDxH) 10180 x 5690 x 5650 mm
Weight: 70000 kg
Software: EP-Hatch , EP Control
Input Data Format: STL file or other convertible format
