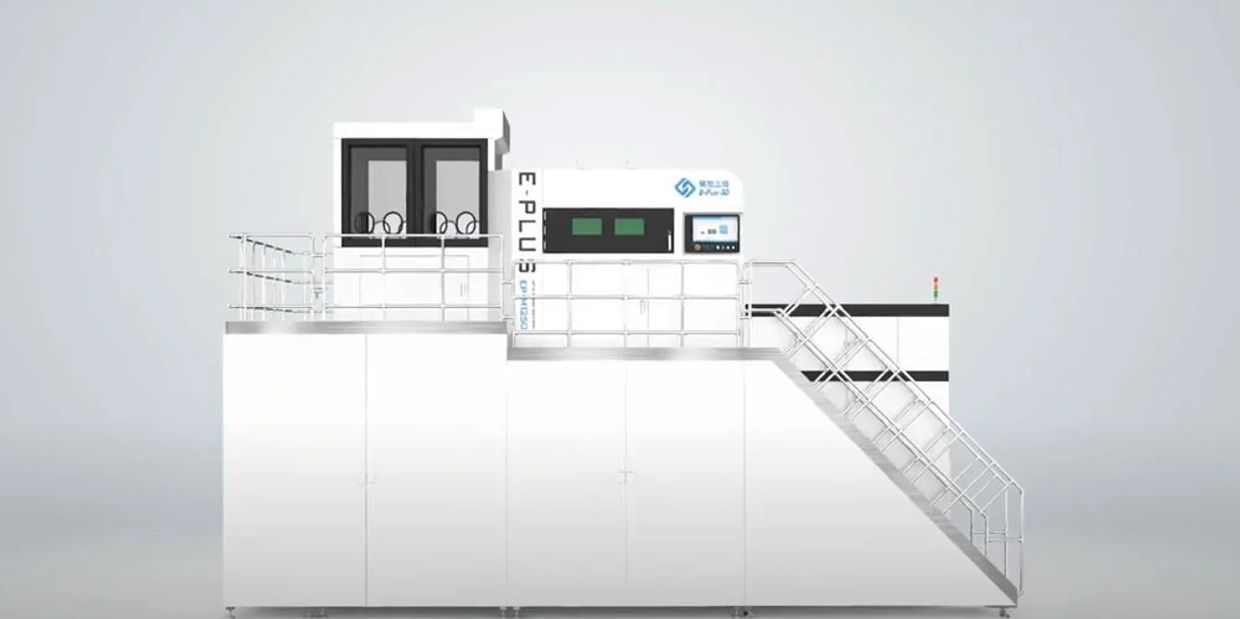

EP-M1250

Technical Specifications

Machine Model: EP-M1250
Build Chamber: (XxYxZ)1250 x 1250 x 1350 mm(49.21 x 49.21 x 53.15 in) (height incl. build plate)
Optical System: Fiber Laser 9 x 500 W / 700 W / 1000 W
Spot Size: 70~120 µm
Max Scan Speed: 8 m/s
Layer Thickness: 20~120 µm
Theoretical Printspeed: Up to 370 cm³/h
Material: Titanium Alloy, Aluminum Alloy, Nickel Alloy, Maraging Steel, Stainless Steel, Cobalt Chrome, Copper Alloy, etc.
Substrate heating: Substrate heating temperature 200 ℃
Power Supply: 380 V, 100 A, 40 kW, 50/60 Hz
Gas Supply: Ar / N₂
Forming chamber oxygen content≤100 ppm
Dimension (WxDxH)9000 x 4800 x 6300 mm
Weight: 50000 kg
Software: EP-Hatch , EP Control
Input Data Format: STL file or other convertible format
